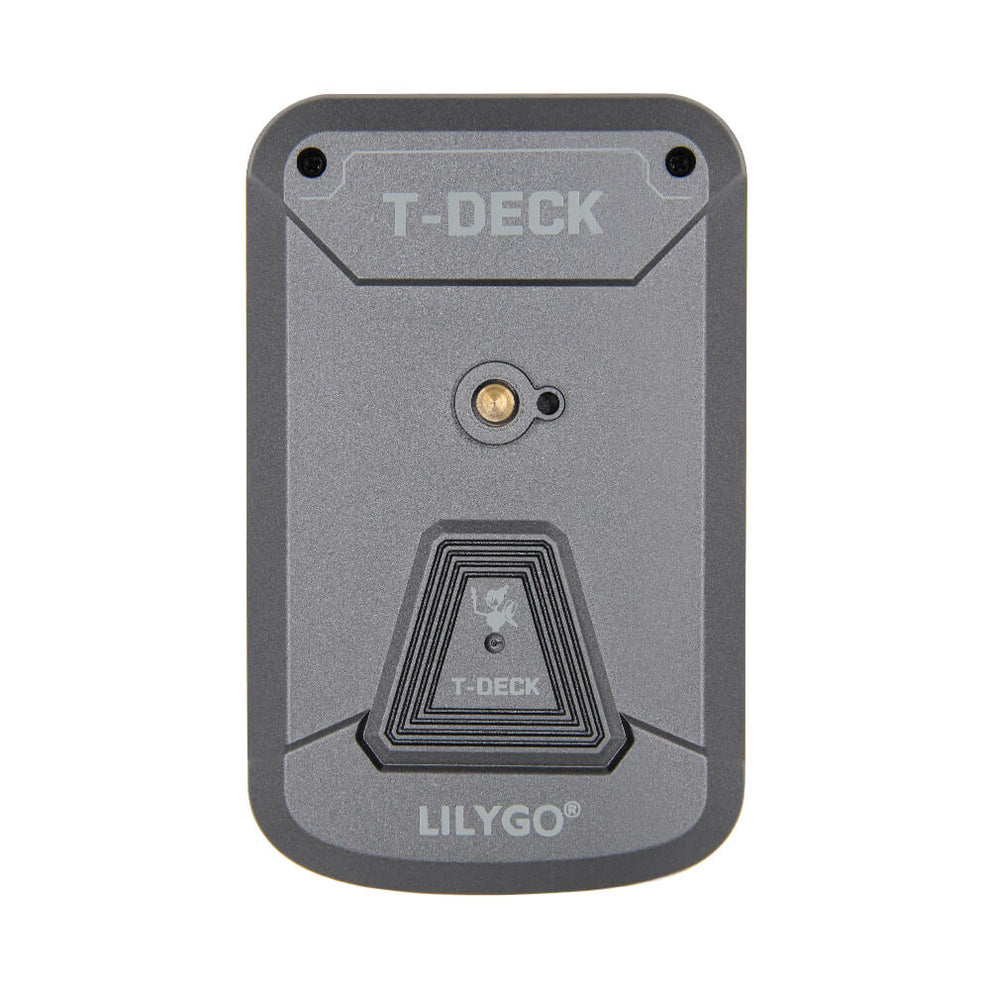

Lilygo T-Deck Plus GPS 915Mhz ESP32 Meshtastic + SMA connector & Antenna USA

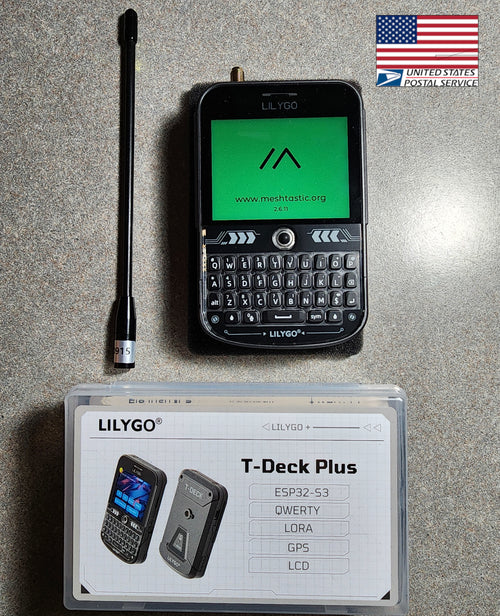

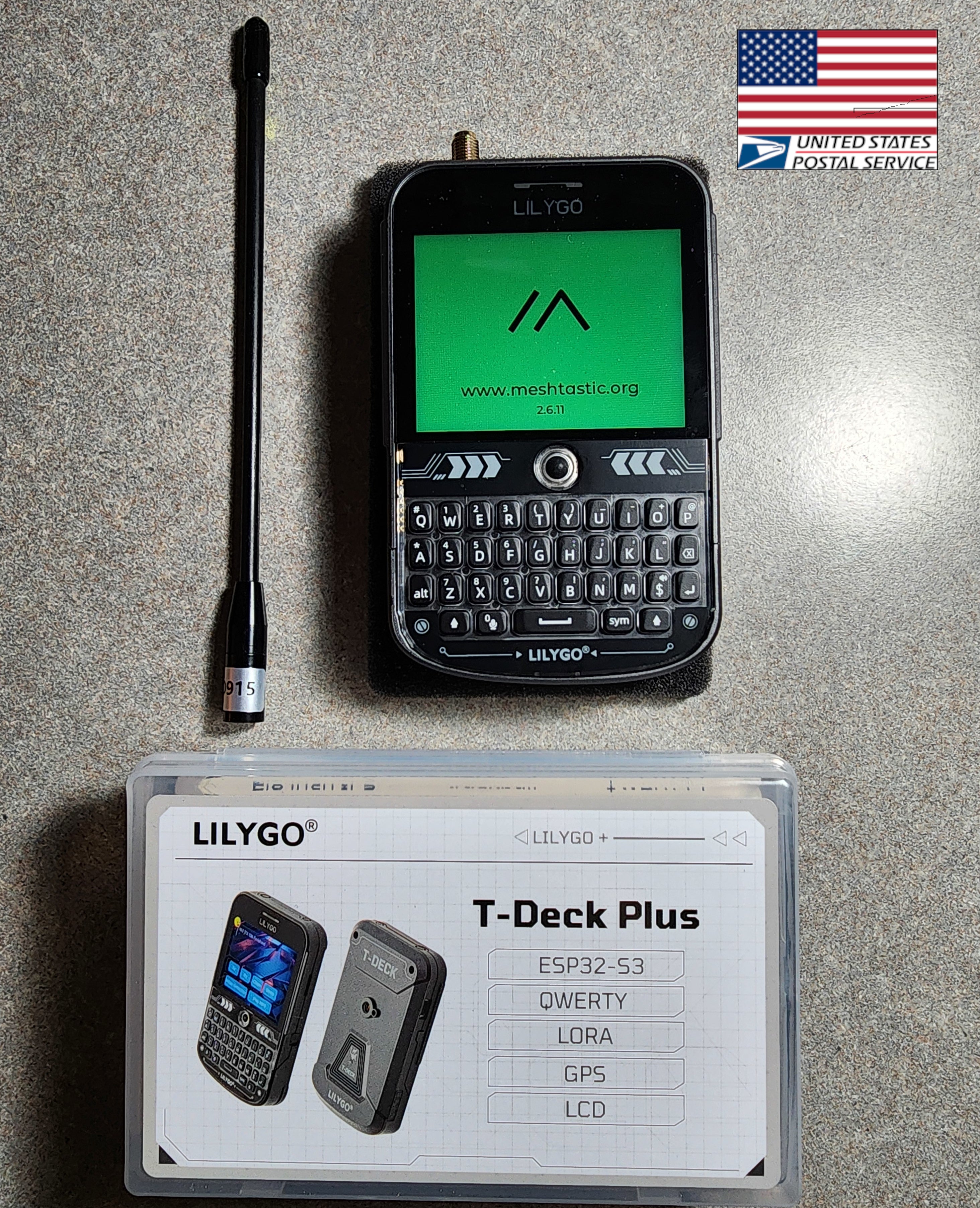

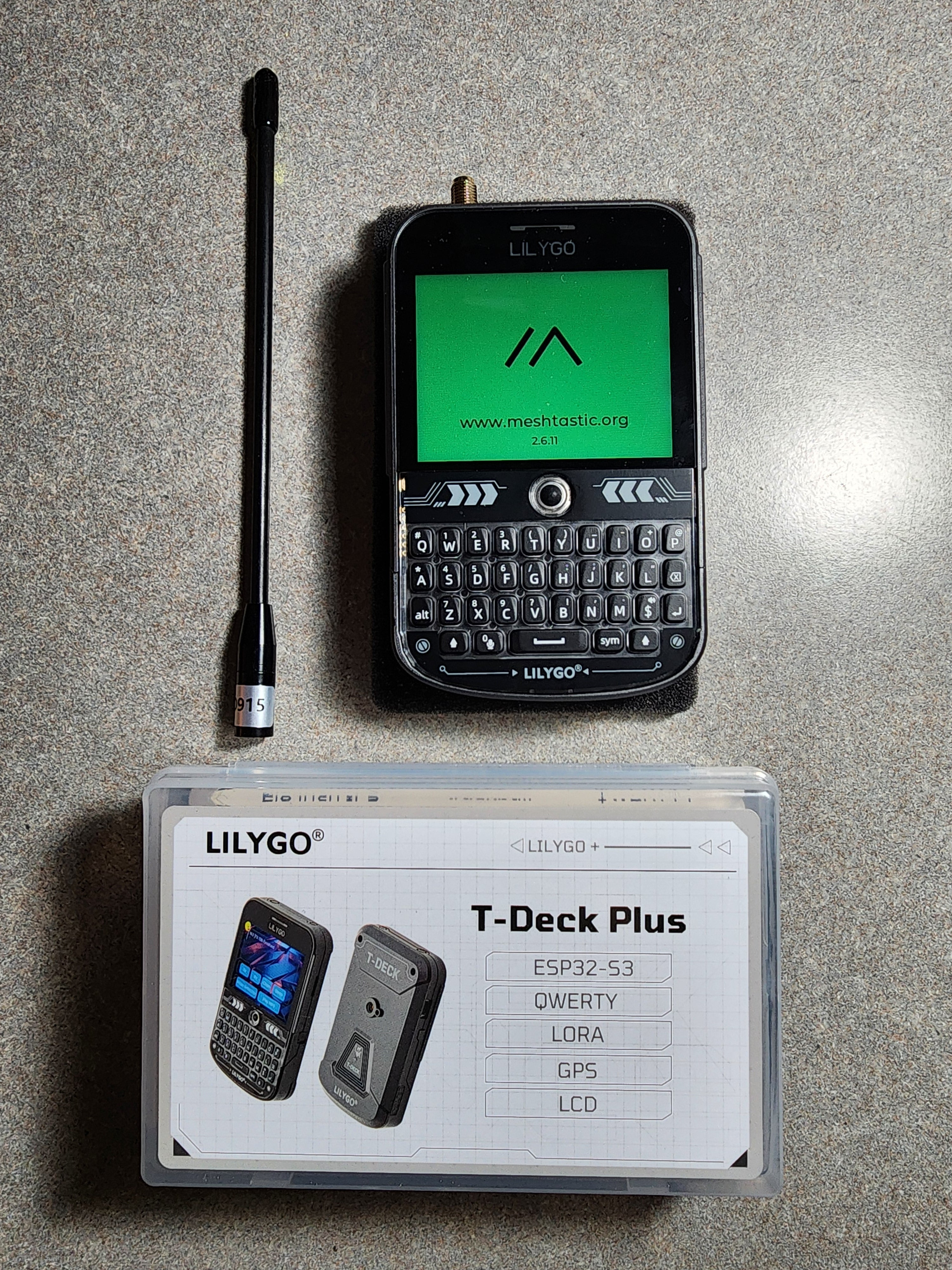

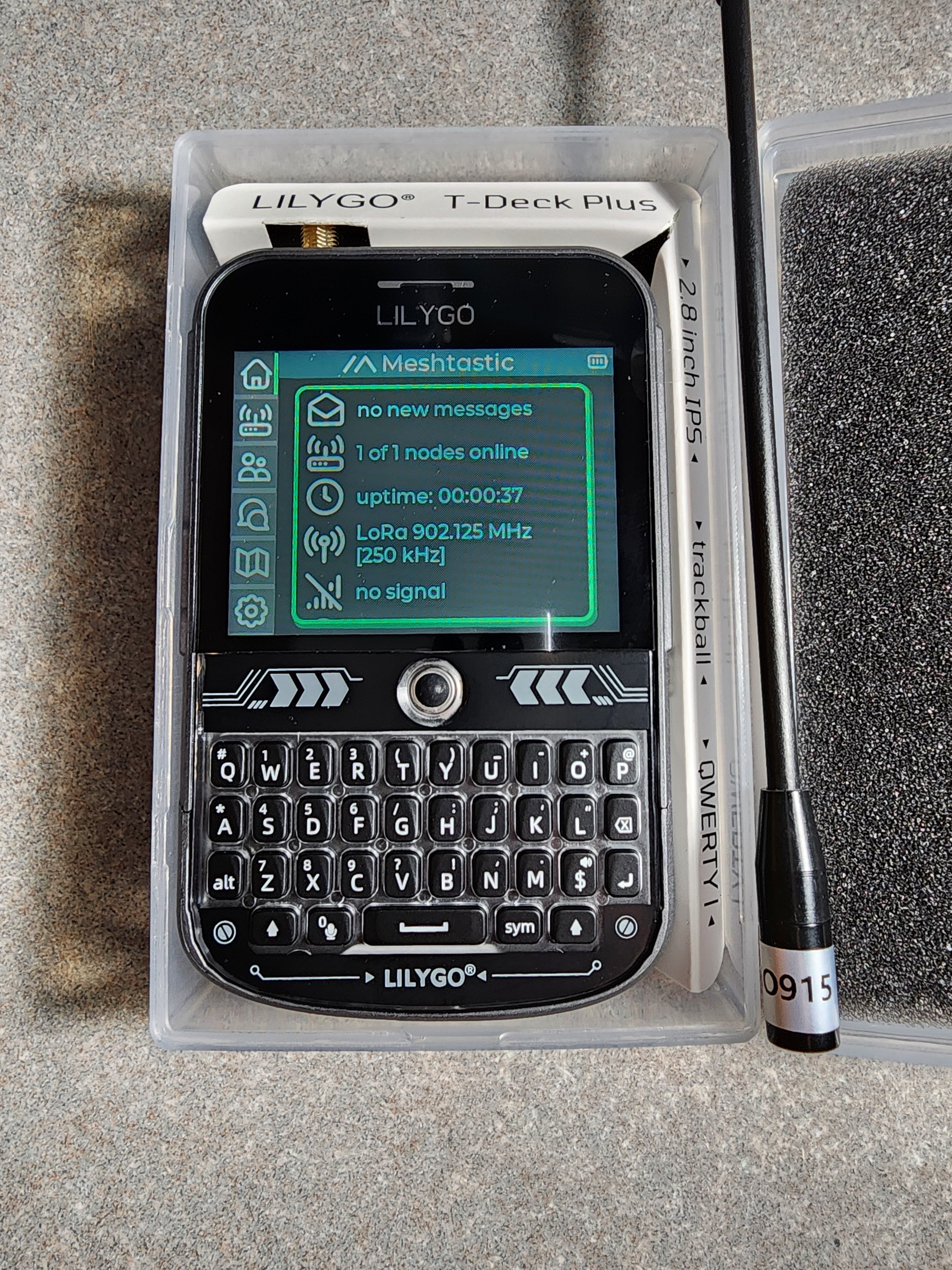

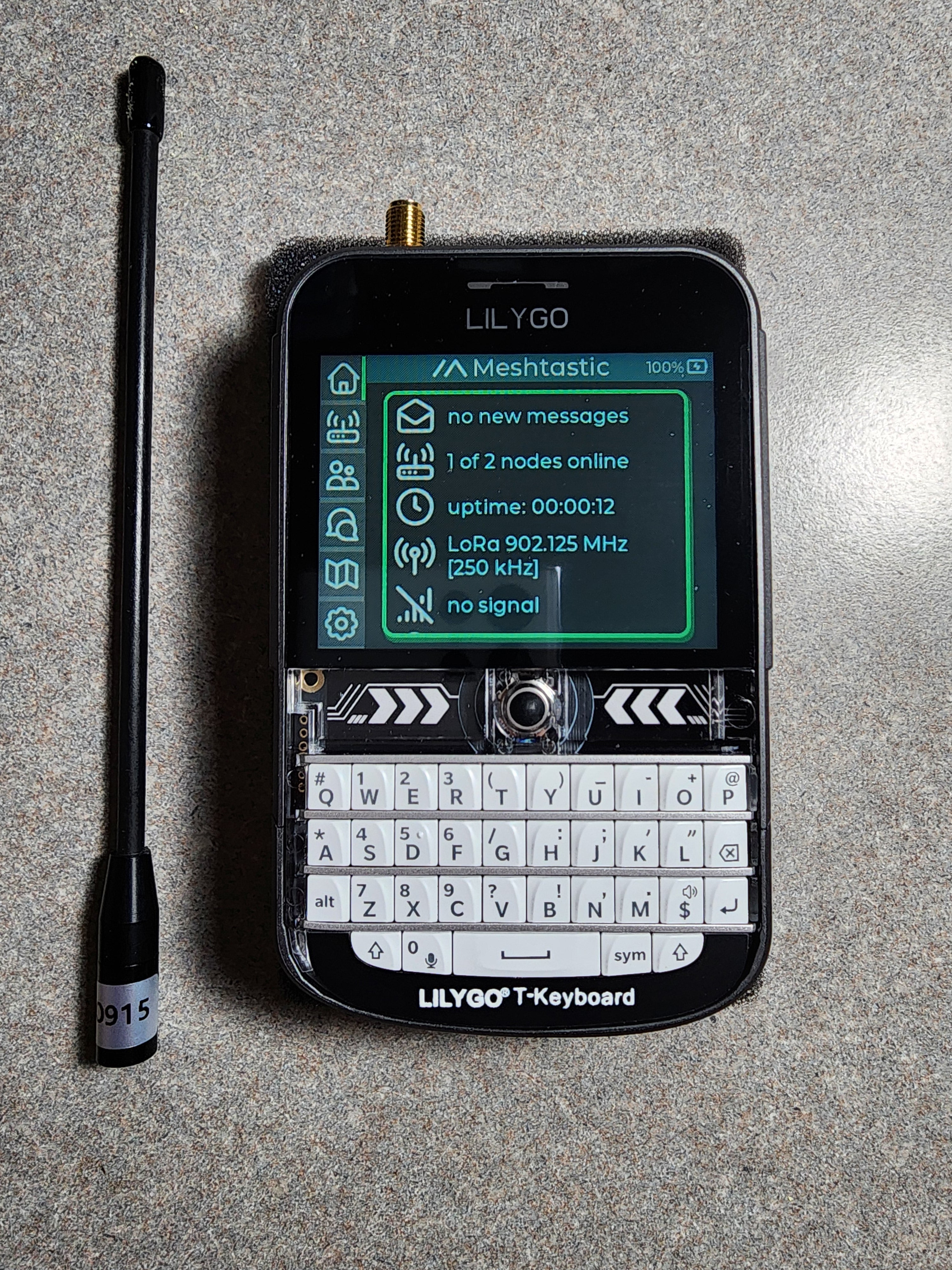

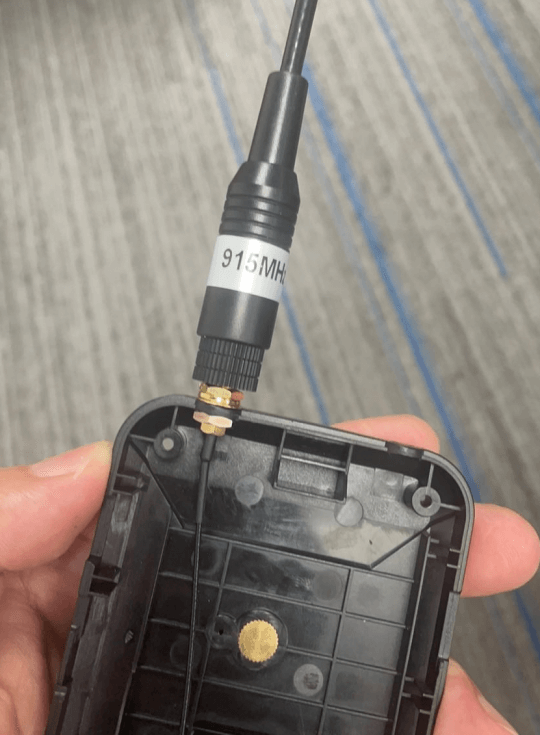

Brand New Lilygo T-Deck Plus (915MHz) Equipped with an SMA connector and 1 flexible 915MHz antenna. Perfect for Meshtastic, standalone messaging, and portable IoT projects.

🇺🇸 Fast Shipping: Shipped directly from the USA — no long wait times, no hidden tariffs!

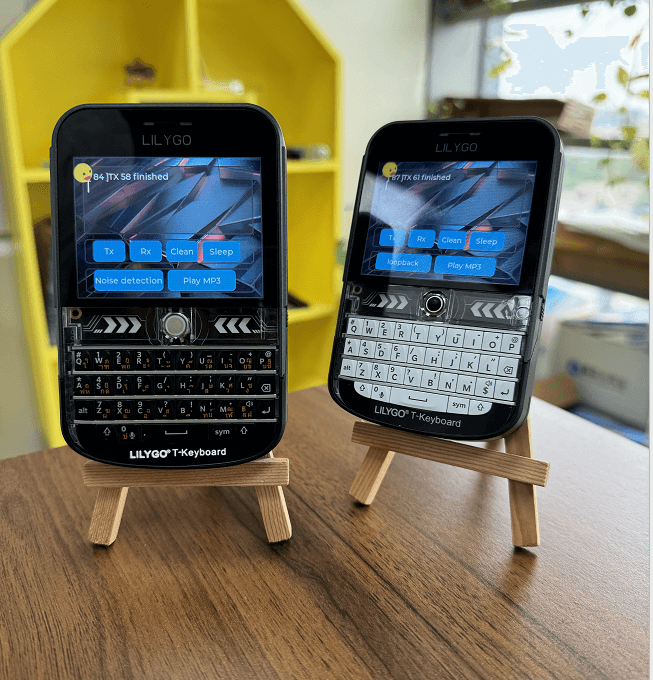

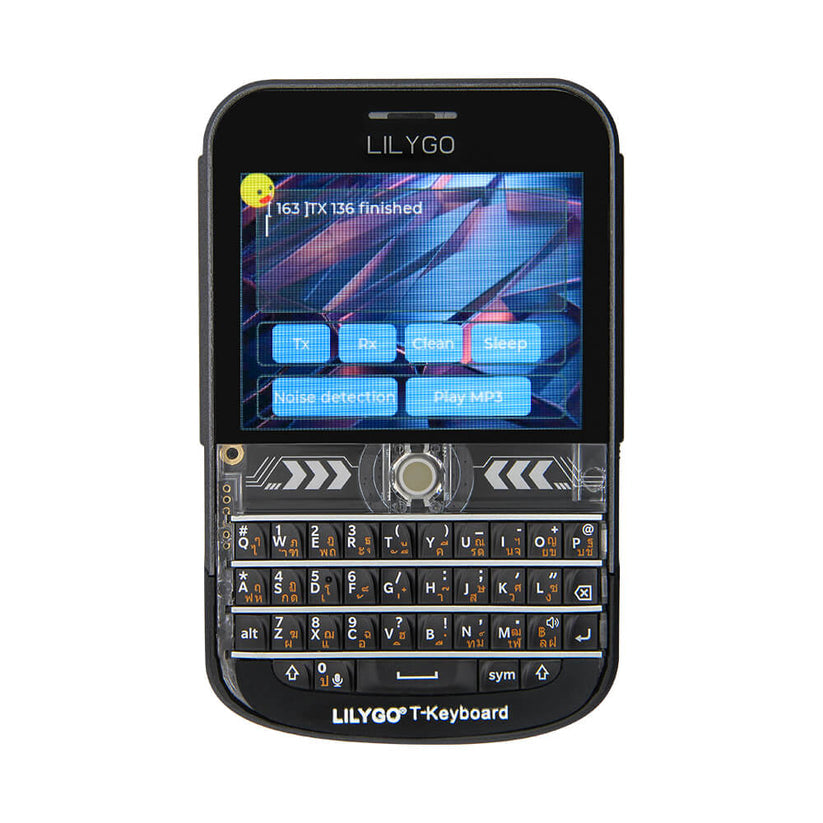

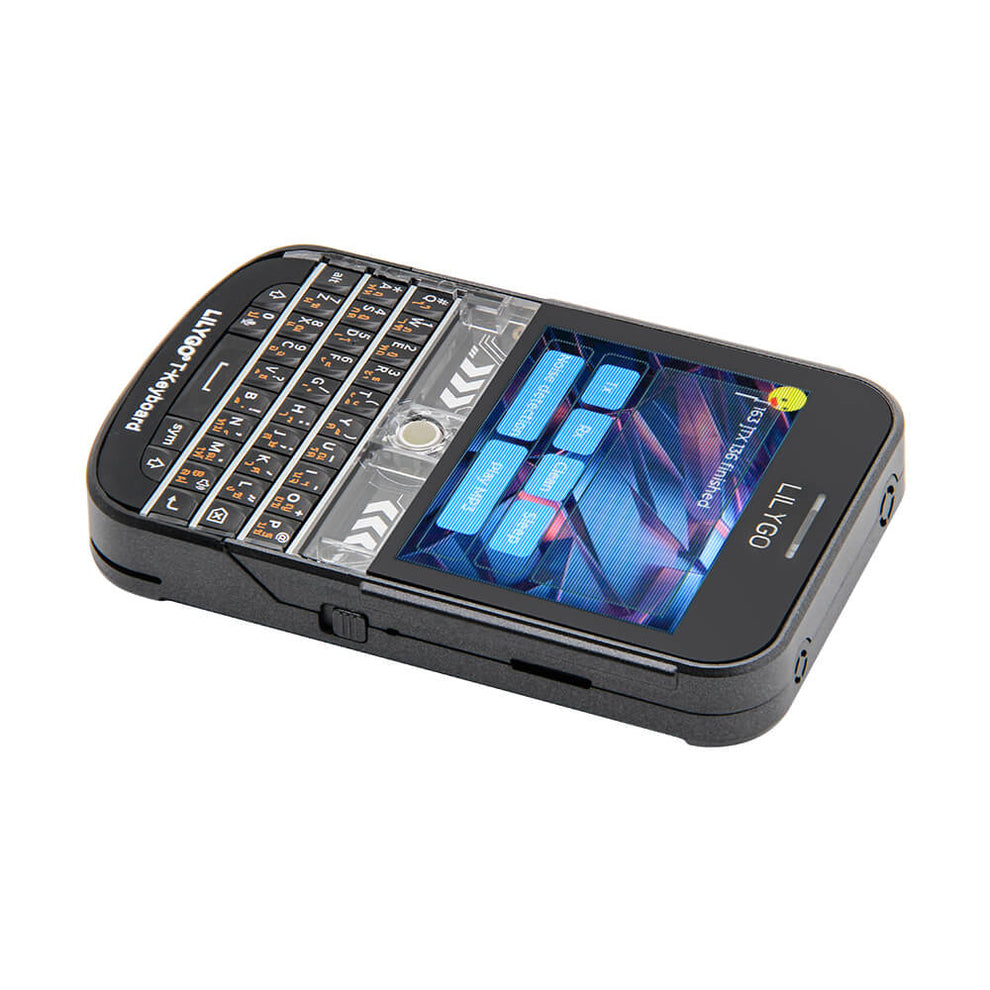

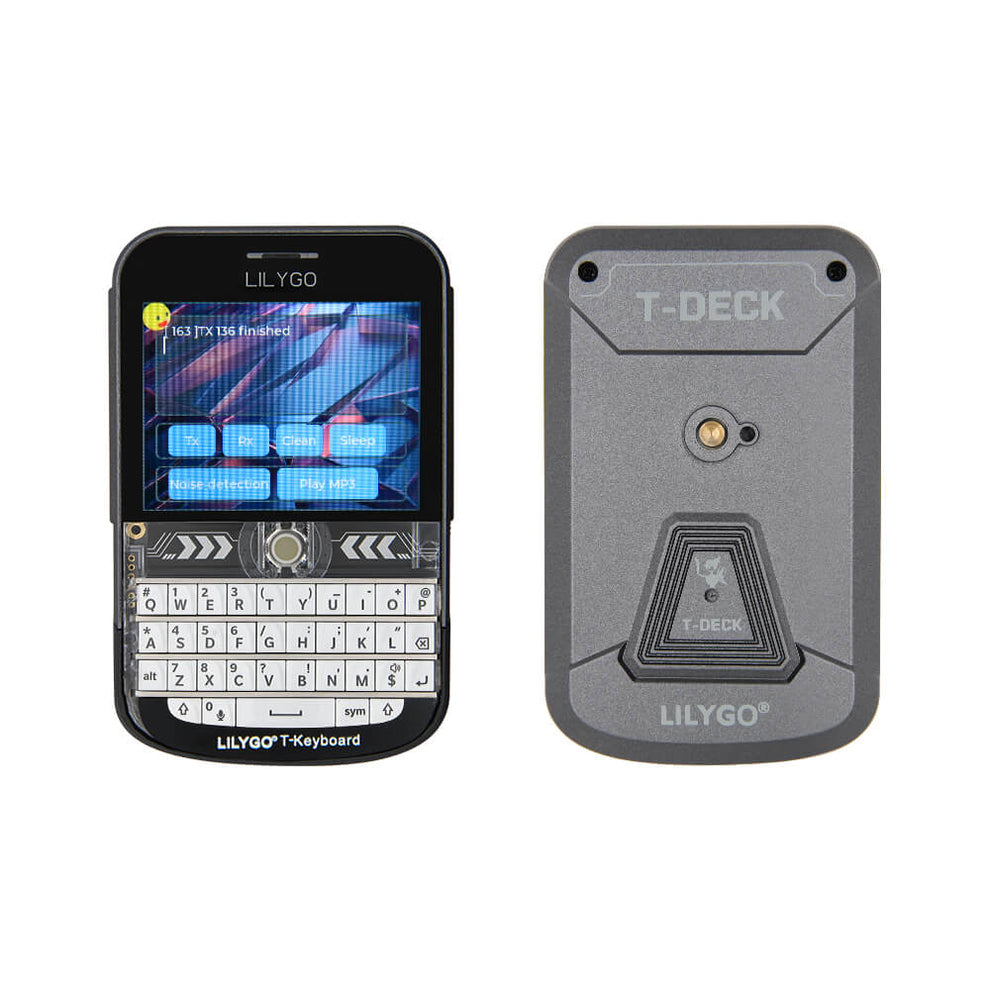

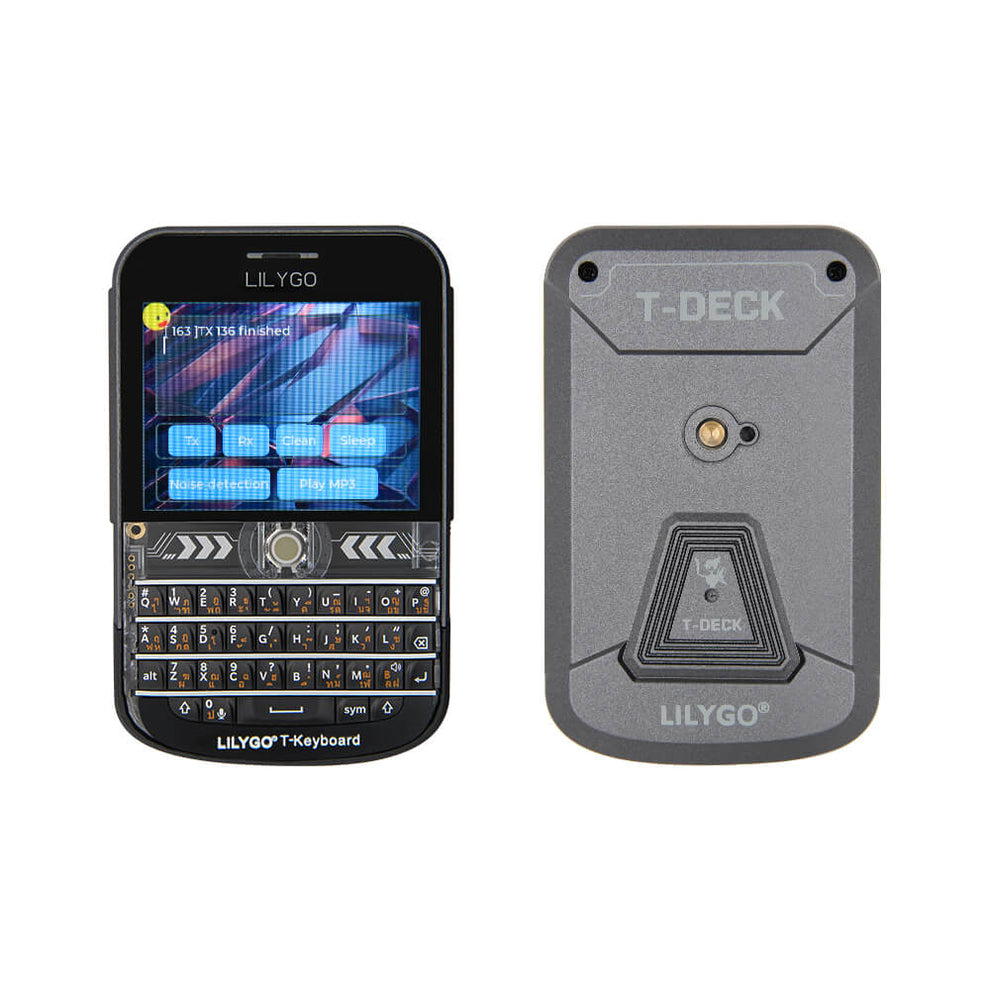

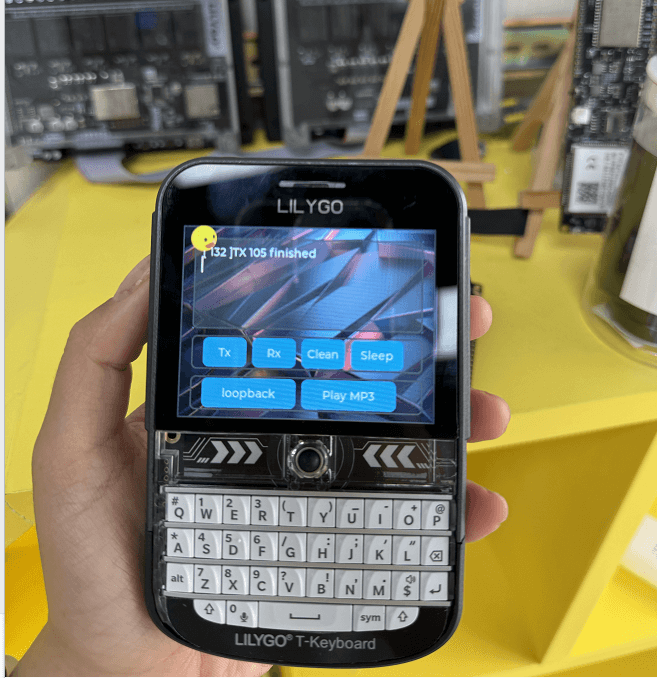

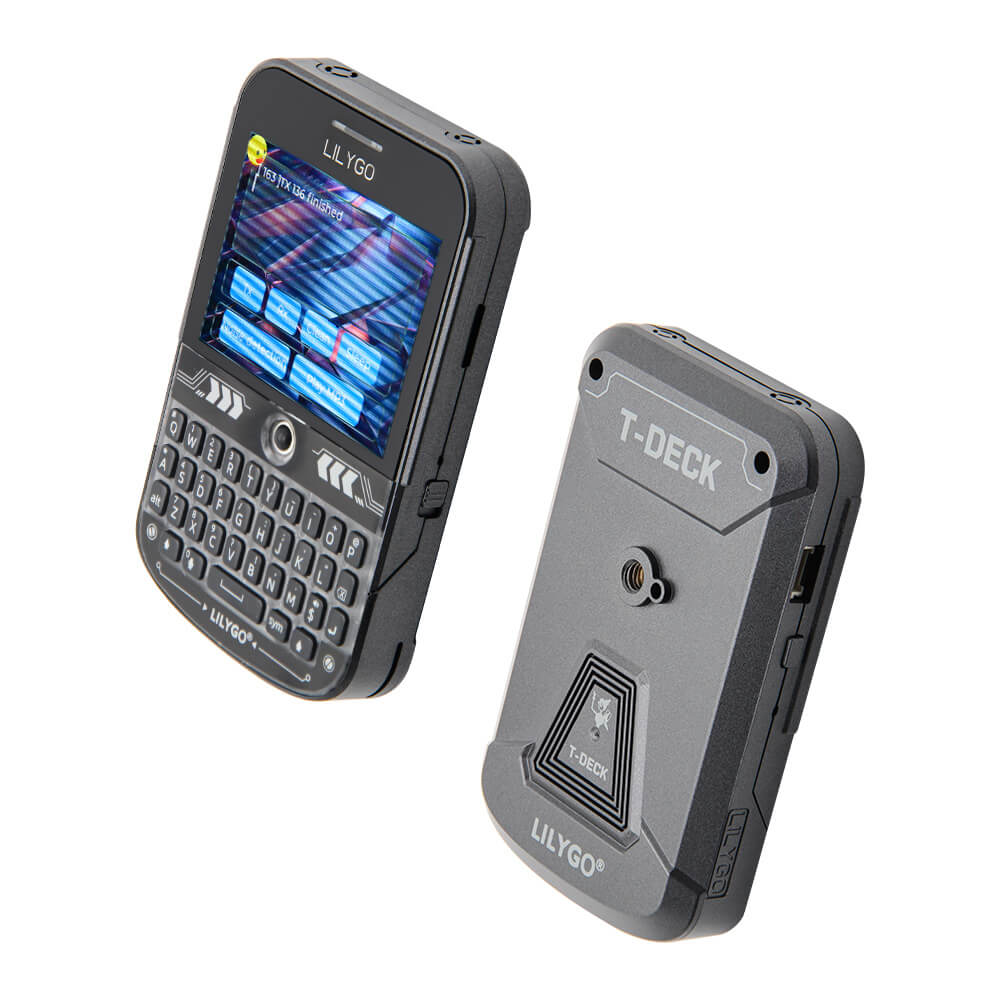

The T-Deck Plus is a pocket-sized, highly customizable hardware platform. It features a brilliant 2.8-inch IPS LCD display, built-in microphone, onboard speaker, and the powerful ESP32-S3 dual-core processor. Whether you are building a standalone encrypted mesh communicator or developing a compact IoT platform, the T-Deck Plus delivers a flexible, robust environment for your coding and hardware needs.

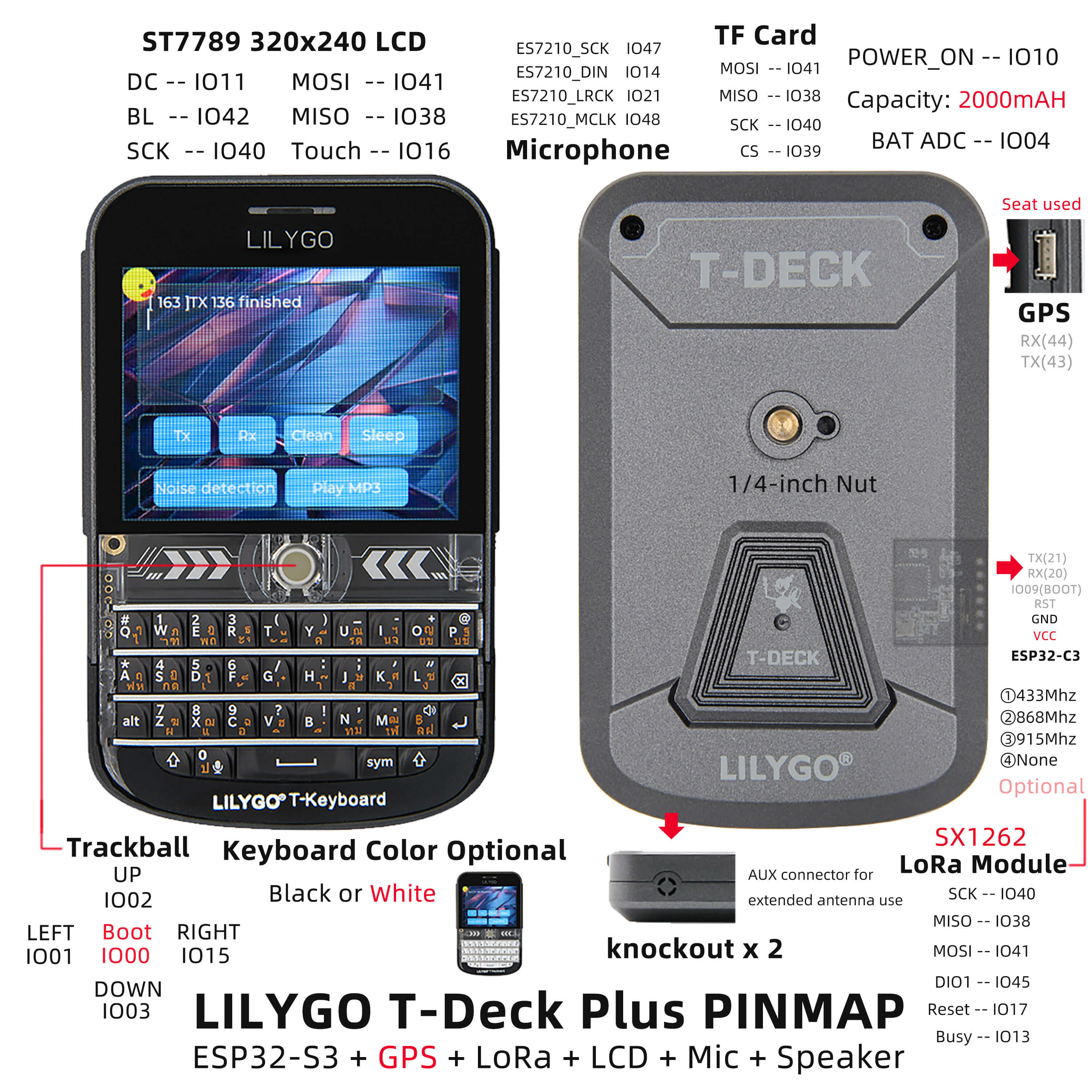

Key Specifications:

• Processor (MCU): ESP32-S3FN16R8 Dual-core LX7 microprocessor

• Wireless Tech: 2.4 GHz Wi-Fi & Bluetooth 5 (LE)

• LoRa Transceiver: SX1262 (+22dBm transmit power)

• Frequency: 915MHz (configured with included antenna)

• Display: 2.8-inch ST7789 SPI Interface IPS LCD (320 x 240 resolution, full viewing angle)

• Memory: 16MB Flash / 8MB PSRAM

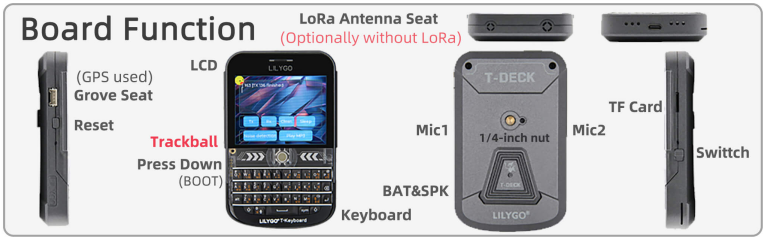

• Onboard Features: Built-in GPS, MicroSD (TF) Card Slot, Microphone, and Speaker

• Battery Monitoring: ADC Pin (IO04)

• Supported Development Platforms: Arduino IDE, PlatformIO-IDE, MicroPython

Developer Resources:

Official LilyGO Supporting GitHub Repository: https://github.com/Xinyuan-LilyGO/T-Deck

Questions? We are here to help! Feel free to message us about item specifics, compatibility, or basic operation. We'll get back to you quickly.
